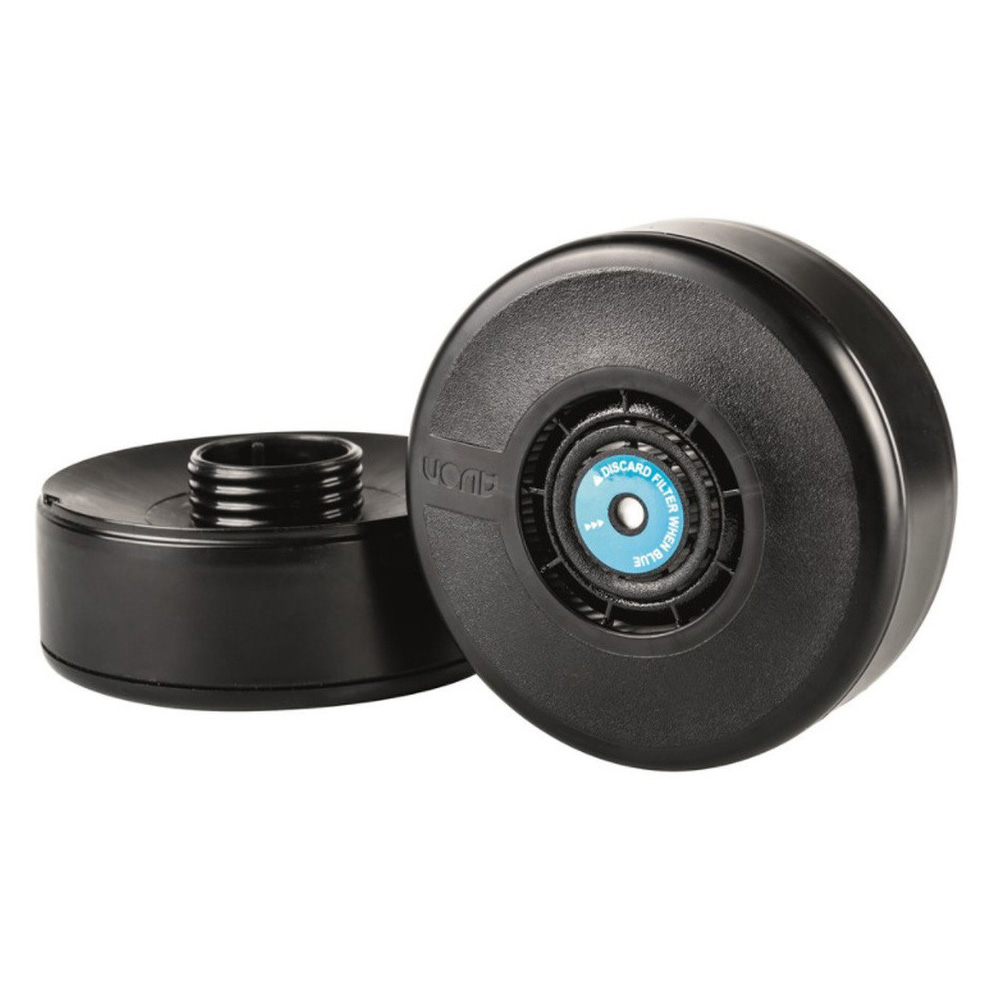

CTCF50 Filter is a low profile combination filter containing a pleated high-efficiency filter element for removal of aerosols, particulate matter, smoke, fumes and a carbon bed for the removal of vapors that may be released from trapped particles. It is specifically designed for removal of riot control agents and tear gases including CS, CN and OC pepper spray.

EFFECTIVENESS

The Avon CTCF50 meets the relevant criteria specified by NIOSH 42CFR84 for effectiveness in the removal of CS/CN agents in aerosol and vapor form.

The filtering capacity for particles of 0.3 micron diameter is greater than 99.97%. Provides 24 hours of protection from continuous exposure to CS, CN, and OC. A particulate filter element exceeding the requirements of NIOSH 42CFR84 P100 and EN 14387 (P3), level is incorporated, ensuring effective performance against dusts, mists, fumes, and biological agents (bacteria, virus, fungal spores etc), and radioactive dusts.

DESCRIPTION

Construction Materials

The canister body is made of a modified polyphenylene

ether-polystyrene blend (PPE&PS), which is a high quality

engineering construction polymer. It provides a very robust

product which is extremely durable against shock and impact

in operational use. The canister body is black in color and has a

matte finish to reduce reflection.

The high efficiency filter element is made of PTFE, PET/PE.

The CTCF50 is entirely non-ferrous and non-magnetic.

HUMIDITY INDICATOR

HUMIDITY

INDICATOR

CONFORMAL

SHAPE

PERFORMANCE

Breathing Resistance

< 20 mm of H2O @ 85 l/min (typical)

ENVIRONMENTAL

When stored in its original packaging the filter canister retains  its operational effectiveness and efficiency with no degradation to its performance under the following environmental storage conditions:

Operational Temperature -32°C to 71°C

The filters have been exposed to high and low ambient storage temperatures without harmful effects.

Humidity range 5% to 100% RH

The filters have been tested following storage in high humidity environments and have been found to be effective.

Rain

The filter will retain its effectiveness in heavy rainfall conditions and it is not prone to water ingress.

Salt Breeze

The filter will not deteriorate with exposure to salt breezes for 24 hours.

Sand and Dust

The filter will not deteriorate when exposed to 24 hours of wind driven sand and dust conditions.

Recommended Storage and Shelf Life

The predicted shelf life of the filter canister (sealed and packaged) is 5.5 years when stored between 14°F and 122°F

(-10°C and 50°C) <80% RH.

PACKAGING

The CTCF50 is hermetically sealed and supplied in a package of four.
