Available in right, left or twin port filter configurations.

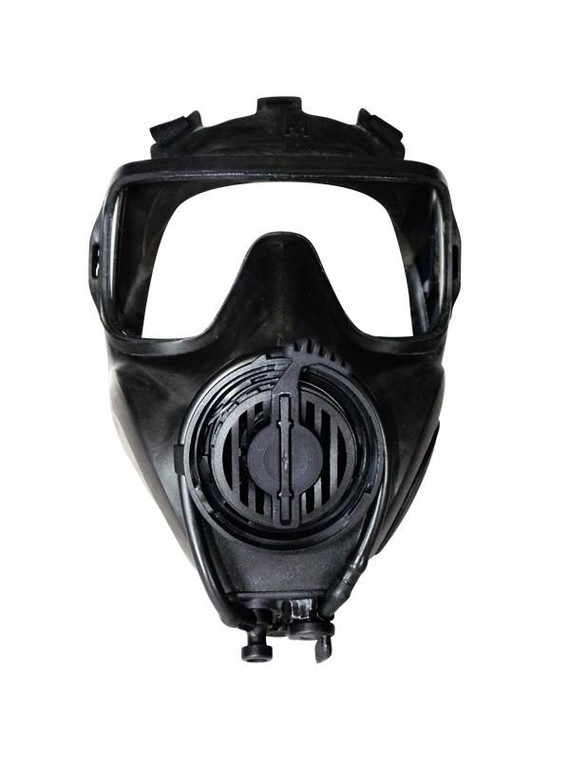

The FM53 system was developed to address the multiple threats encountered on the modern battlefield, war on terrorism and peace keeping operations. It provides protection against traditional chemical and biological warfare agents and select toxic industrial materials (TIMs).
Features
- Panoramic single lens visor
- Optically correct visor
- Scratch Resistant
- 4 face piece sizes for improved fit
- Chlorobutyl rubber and silicone blend mask
- Electronic Communication Port for integrated voice projection and radio communication
- Optional VPU provides ability to easily communicate while wearing mask
- 6 point skull cap head harness with low profile pre-adjusted brow straps
- Fail safe, high flow hydration system
- Interchangeable silicone nosecups for custom fit
- Comfortable reflex seal with low profile brow for helmet compatibility
- The unique chlorobutyl/silicone blend face piece material ensures the mask is not only high in protection but also provides a better seal and is more comfortable to wear for extended periods
- Reduced buckle size for suit/helmet integration
- Provides clear communication while wearing mask
- Electronic pass-through for external radio use
Specifications
CBRN Agent Resistance
| Mustard (H) | Greater than 36 hours |
|---|---|
| Sarin (GB) | Greater than 36 hours |
| Soman (GD) | Greater than 36 hours |
| VX | Greater than 36 hours |
| Laboratory protection factor performance (sodium chloride) | Greater than 10,000 |
Breathing Performance (excluding filter)
| Re-breathed CO2 | 0.80% |
|---|---|
| Inhalation resistance | 85 l/Min 15 mm WG 160 l/Min 32 mm WG |
| Exhalation resistance negative pressure mode | 85 l/Min 15 mm WG 160 l/Min 30 mm WG |
Materials Used
| FM53 Mask Visor | Flexible polyurethane |
|---|---|
| FM53 Mask Facepiece | Chlorobutyl/Silicone Rubber |
Hydration
| Drinking Flow Rate | >230 ml/min |
|---|
Approvals (as stated by Avon Protection)
FM53 with CBRNCF50 filter NIOSH CBRN APR standard Cap 1
Approval number TC-14G-0319
FM53 with CTCF50 filter NIOSH certified to 42CFR84
Approval number TC-14G-0323
Type-examination approval: PPE Regulation 2016/425/EU - Module B: Certificate CE 684837
Compatibility
- Mask integrates with NFPA Class 2 and 3 suits
- Second-skin hood/mask interface allows mask to integrate with the Gore Chempak™ material protective hood
Export control
Avon Protection products and associated technical information are controlled under U.S. export laws and regulations and are subject to the Export Administration Regulations (EAR) under the U.S. Department of Commerce (DOC), Bureau of Industry and Security (22 CFR 730-774). Prior authorization from the U.S. Government may be required for any export, re-export, diversion, or transfer.
- Export control:
- Subject to the Export Administration Regulations (EAR) (per Avon Protection)
