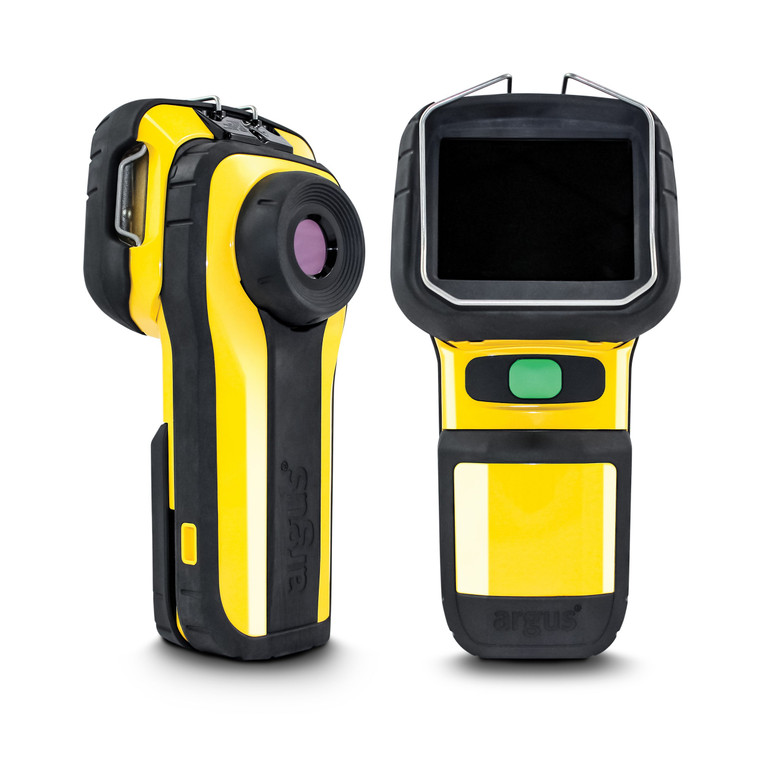

Mi-TIC E L™ Thermal Imaging Camera

The Mi-TIC E L thermal imaging camera provides a crystal clear image with a dynamic range up to 1400°F (760°C) and at the same time can still see very low temperature objects, which is ideal for casualty searches.

Applications include: Ventilation location selection, Search and rescue (fire and non-fire), Seat of fire localization, Overhaul, Size-up.

The Mi-TIC E L is available with a unique dual use desktop/in-truck charger station which securely retains and charges both the thermal imager and a spare battery. Multiple charger stations can be daisy-chained together up to a maximum of 6 units.

Weighing approximately 870g (1.9lb), the Mi-TIC E L is a small footprint thermal imager that can be easily and comfortably held in the palm of your hand. Unlike many thermal imagers, the Mi-TIC E L design allows it to be worn in multiple ways – in the hand, inside a pocket, clipped outside a pocket, clipped to a lanyard or hung around the neck.

Features

• Available in 1- or 3-button option
• 3-button models are user configurable
• On/Off / NFPA "TI BASIC" button
• 320x240 Resolution; Display size diagonal – 3.5” (90mm)
• High dynamic temperature range up to 1400°F (760°C)
• Uninterrupted imaging with Tri-Mode Sensitivity
• Unmistakeable fixed scene colorization
• Digital spot temperature measurement*
• Dynamic Scene Enhancement
• Image freeze, image capture and video capture*
• Software customization tool- activate/deactivate desired functionality
• Compact Truck Charger- space saving smart charger ensures camera is ready to respond

* 3-button models only

• Direct Temperature Measurement (DTM)*
• Customizable Start-Up Screen
• Firefighting Application Modes
  • Fire
  • Fire Plus*
  • Overhaul*
  • Size-Up*
• Search and Rescue Application Modes
  • White Hot*
  • Missing Person*
• X2 and X4 Digital Zoom*
• Image Capture (1000 images)*
• Video Capture (up to 16 hours)*
• “Black Box” Video Recording (up to 16 hours)
• Image Freeze*
• User Replaceable Germanium Window (Order code: ARG_MI_RWS)
• No PC Software required for image and video download – when the camera is docked, it is recognized as a removable device (like a USB memory stick)

* 3-button variants only

Specifications

Environmental Data

Detector

Lens

Display

Mechanical Data

Electrical Data

Approvals (as stated by Avon Protection)

The Mi-TIC E L has Class I, Division 2 and Class II, Division 2 Non-Incendive certifications.

Compatibility

CAMERA STANDARD ACCESSORIES

• Two argus® Mi-TIC Lithium Iron Phosphate Battery Packs (Order code: ARG_MI_BLY)
• Desktop/Vehicle Charger Station (Order code: ARG_MI_CS)
• Charger Power Supply with US, UK, Europe, Aus and South America Plugs (Order code: ARG_MI_PSU)
• Retractable Lanyard (Order code: ARG_MI_RL)
• Charger Station Mounting Bracket (Order code: ARG_MI_MB)
• USB Connection Lead for connecting dock to PC / Laptop (Order code: ARG_MI_USB)
• Pocket Clip (Order code: ARG_MI_PCLIP_S)
• Quick Start Guide

CAMERA OPTIONAL ACCESSORIES

• "AA" Battery Pack (non-NFPA) (Order code: ARG_MI_YAA)
• argus® Mi-TIC Black Hard Case (Order code: ARG_MI_BHC)
• argus® Soft Carry Case Order code: (P7030SC)
• argus® Neck Strap Order code: (P7030NS)
