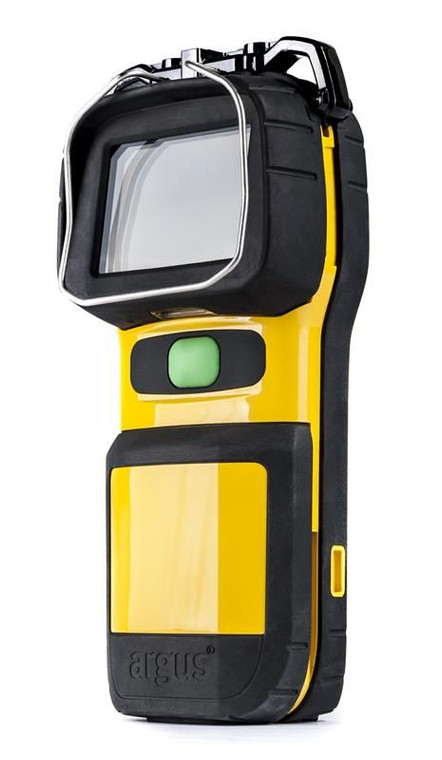

Mi-TIC E™ Thermal Imaging Camera

The Mi-TIC E thermal imaging camera provides a crystal clear image with a dynamic range up to 1400°F (760°C) and at the same time can still see very low temperature objects, which is ideal for casualty searches.

Applications include ventilation location selection; search and rescue (fire and non-fire); seat of fire localization; overhaul; size-up.

Weighing approximately 755g (1.7lb), the Mi-TIC E is a small footprint thermal imager that can be easily and comfortably held in the palm of your hand. Unlike many thermal imagers, the Mi-TIC E design allows it to be worn in multiple ways – in the hand, inside a pocket, clipped outside a pocket, clipped to a lanyard or hung around the neck.

With a thumb operated green “on/off” button and superb start-up time of 5 seconds, the Mi-TIC E is simple to use.

The use of Lithium Iron Phosphate technology ensures the Mi-TIC E delivers in excess of 4 hours of battery life over 2,000 plus charge cycles.

Features

• Available in 1- or 3-button options
• 3-button models are user configurable
• On/Off / NFPA "TI BASIC" button
• 320x240 Resolution; Display size diagonal - 2.7" (69mm)
• High dynamic temperature range up to 1400°F (760°C)
• Uninterrupted imaging with Tri-Mode Sensitivity
• Unmistakeable fixed scene colorization
• Digital spot temperature measurement (3-button models only)
• Dynamic Scene Enhancement
• Image freeze, image capture and video capture (3-button models only)
• Software customization tool- activate/deactivate desired functionality
• Compact Truck Charger - space saving smart charger ensures camera is ready to respond

• Direct Temperature Measurement (DTM)*
• Customizable Start-Up Screen
• Firefighting Application Modes
  • Fire
  • Fire Plus*
  • Overhaul*
  • Size-Up*
• Search and Rescue Application Modes
  • White Hot*
  • Missing Person*
• X2 and X4 Digital Zoom*
• Image Capture (1000 images)*
• Video Capture (up to 16 hours)*
• “Black Box” Video Recording (up to 16 hours)
• Image Freeze*
• User Replaceable Germanium Window (Order code: ARG_MI_RWS)
• No PC Software required for image and video download – when the camera is docked, it is recognized as a removable device (like a USB memory stick)

* 3-button variants only

Specifications

Environmental Data

Detector

Lens

Display

Mechanical Data

Electrical Data

Approvals (as stated by Avon Protection)

The Mi-TIC E has Class I, Division 2 and Class II, Division 2 Non Incendive certifications.

Compatibility

CAMERA STANDARD ACCESSORIES

• Two argus® Mi-TIC NFPA Lithium Iron Phosphate Battery Packs (Order code: ARG_MI_BLY)
• Desktop/Vehicle Charger Station (Order code: ARG_MI_CS)
• Charger Power Supply with US, UK, Europe, Aus and South America Plugs (Order code: ARG_MI_PSU)
• Retractable Lanyard (Order code: ARG_MI_RL)
• Charger Station Mounting Bracket (Order code: ARG_MI_MB)
• USB Connection Lead for connecting dock to PC / Laptop (Order code: ARG_MI_USB)
• Pocket Clip (Order code: ARG_MI_PCLIP)
• Quick Start Guide

CAMERA OPTIONAL ACCESSORIES

• “AA” Battery Pack (non-NFPA) (Order code: ARG_MI_YAA)
• argus® Mi-TIC 320 Black Hard Case (Order code: ARG_MI_BHC)
• argus® Soft Carry Case (Order code: P7030SC)
• argus® Neck Strap (Order code: P7030NS)
